4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength

  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
  • 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength
Lieu d'origine Guangdong, Chine
Quantité de commande min 1

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Puissance de SORTIE 2000w Dimensions 620x490x878mm
Poids 100,5 kg Longueur d'onde laser 1080 ± 5 nm
Mode de fonctionnement Continu/modulé Ajustement de puissance 10~100%
Diamètre du noyau de fibre 50 ((25,100,200 optionnellement) Lumière ciblée Feu rouge
Longueur de fibre 10m Vitesse de soudage 0 à 120 mm/s
Épaisseur de matériau <3,5 mm (selon le matériau) Température de travail 10 à 40°C
Humidité de travail 10-85%, pas de condensation Vitesse d'alimentation en fil 38 ~ 600 mm/min
Diamètre d'alimentation du fil 0.8/1.0/1.2/1.6mm Méthode de refroidissement Refroidissement par air
Tension de fonctionnement 220V, 50 / 60Hz
Mettre en évidence

4-in-1 Functional Handheld Laser Welding Machine

,

2 Years Warranty Portable Laser Welder

,

1080±5nm Wavelength Fiber Laser Welding Machine
Laisser un message
Description de produit

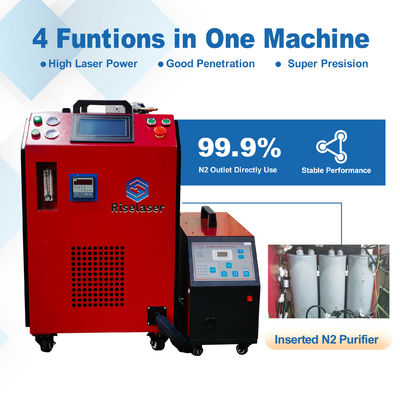

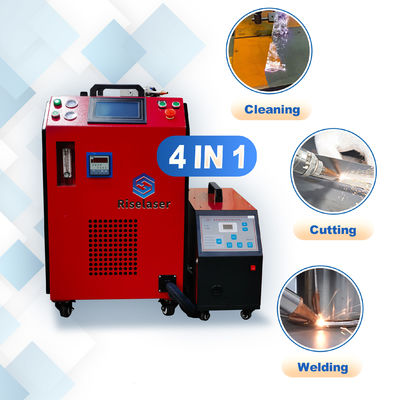

Integrated Nitrogen Generator 4-in-1 Functional Air Cooled Laser Welding Machine
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 0 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 1 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 2 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 3 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 4 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 5 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 6 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 7 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 8 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 9 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 10 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 11
Technical Specifications
Feature Specification
Output power 800W/1200W/1500W/2000W
Laser wavelength 1080±5nm
Operating mode Continuous/Modulation
Power adjustment range 10~100%
Fiber core diameter 50(25,100,200 optional)
Aiming and positioning Red light
Fiber length 10m
Welding speed 0~120mm/s
Applicate thickness <3.5mm(depending on the material)
Working environment 10-40℃,humidity 10-85%,no condensation

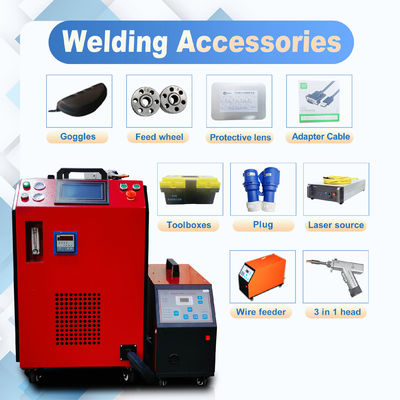

Wire feeder Standard wire feeding speed 38~600mm/min
Wire feed diameter 0.8/1.0/1.2/1.6mm

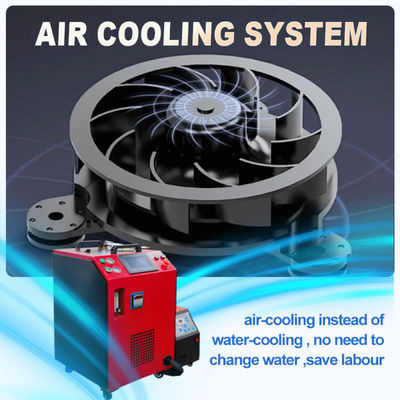

Cooling way Air cooling
Operating voltage 220V,50/60Hz
4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 12 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 13 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 14 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 15 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 16 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 17 4-in-1 Functional Handheld Laser Welding Machine with 2 Years Warranty and 1080±5nm Wavelength 18
Frequently Asked Questions
1. How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2. How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
3. How thick can 1500W-3000W be welded?
1-8mm thick metal materials.
4. Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us and provide your email address. We will send more detailed pictures to your email.
5. Can aluminum and galvanized steel be welded?
Yes, it can.
6. Packaging
All our machines are packed in wooden boxes.
7. Language interface

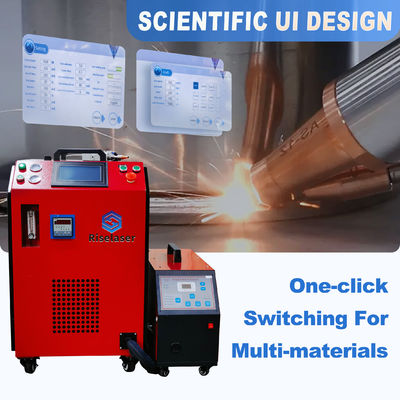

Supports language customization. You can also translate and insert to software.
